Summit ED Binoculars

USD $500USD $850

Clear
View cart

OVERVIEW

BINOCULARS, PERFECTED

Our ED glass binoculars, combined with a BAK4 roof prism that’s phase coated with a dielectric application process, provide unparalleled clarity and low-light performance. Housed in a magnesium body, they’re some of the lightest and toughest binoculars you’re ever going to own.

The optical components are made using the highest quality Extra-Low Dispersion (ED) Japanese glass, which are ground down and polished with state-of-the-art equipment. The optical system uses a set of finely lenses, and when combined with the Prime ED glass provides an unmatched clarity of image, depth of field, and field of view. Every lens is meticulously inspected by our production engineers before it goes into one of our binoculars.

Finally, the entire system is inspected once-again, then assembled by hand in a Certified Clean Environment. The final step of the assembly is dry-Argon purging and sealing, ensuring that the entire optical system is shockprooffogproof, and IP67-rated dustproof and waterproof.

PRODUCT FEATURES

  • Japanese ED Glass Optical System
  • Magnesium-alloy body
  • Standard Binocular Adapter Threading, perfect for pairing with the Apex Spire tripod adapter

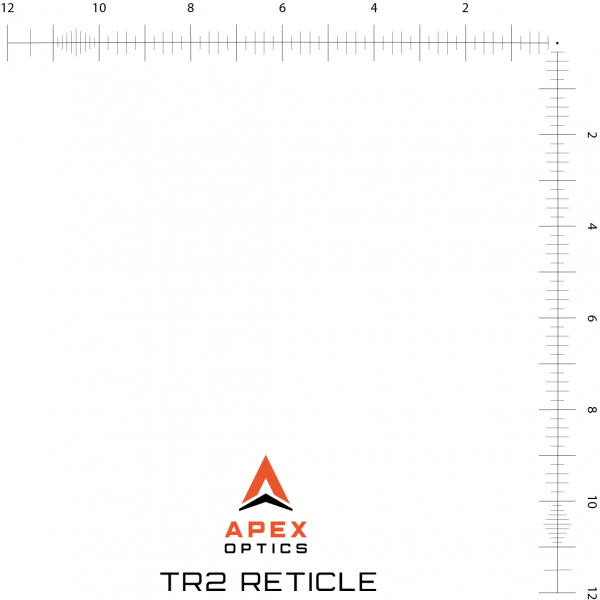

  • Proprietary Glass-Etched TR2 MIL Ranging Reticle on the Summit PRO
  • Completely weatherproof, fog-proof, dust-proof, and waterproof rated to IP67 standard
  • Designed for and tested in the rugged terrain of the Canadian Rockies, the frozen tundra, the wet Rainforest, the dry and dusty badlands throughout Southern Alberta and British Columbia

INCLUDED IN THE BOX: CUSTOM-MOLDED LENS COVERS, OUTFITTER PRO™ CHEST HARNESS, SOFT BAG, LENS CLOTH, MANUAL



TECHNICAL SPECIFICATIONS

  • Objective Lens 42mm or 50mm
  • Magnification 10x, 12x
  • FOV @ 1000y 10x = 326ft (108m) 12x=273ft (91m)
  • Eye Relief 3.54″ (90mm)
  • Exit Pupil 15.1mm (4.3mm diam.)
  • Nearest Focus 2m
  • Glass TypeED
  • Reticle TR2 (PRO ONLY)
  • Reticle TypeGlass Etched (PRO ONLY)
  • Lens Coating7-Layer Proprietary SMC
  • Prism Coating Phase Coated + Dialectric
  • Weatherproof Rating IP67
  • Diopter Adjustment Right Eye
  • Reticle Rotation Left Eye (PRO ONLY)
  • Dimensions 10×42 = 5.94×4.96×2″ (151x126x51mm) 12×50 = 6.5×5.3×2.4″ (165x135x61mm)
  • Weight 10×42 = 24oz (690g) 12×50 = 32oz (915g)
  • Mounting Length6.75″ (171mm)

ADDITIONAL INFORMATION

Additional information

Weight 1.25 kg
Dimensions 49 × 14 × 14 cm
SIZE

10×42 ED, 12×50 ED, 12×50 PRO
