Edge 1-10×24 FFP LPVO

USD $1,500

OVERVIEW

THOUGHTFULLY DESIGNED, EXPERTLY BUILT – SHIPPING SUMMER 2023!

We start off with a solid block of 6061-T6 Aircraft Grade Aluminum billet and mill it down to a perfectly concentric 34mm tube.

We then soak it in a proprietary solution so that it exceeds MilSpec Type III Hardness and Abrasion Resistance standards. That’s how it gets that signature matte-black finish.

Our erector system is built with stainless steel components for a positive and distinctive “click”, guaranteeing repeatability and durability for the life of the product. No matter what the M.D. or the elements throw your way, you’ll be confident your riflescope will be up to the task without skipping a beat or getting off-zero.

The optical components are made using the highest quality Extra-Low Dispersion (ED) Japanese glass, which are ground down and polished with state-of-the-art equipment. The optical system uses a set of finely tuned APO (apochromatic) lenses, and when combined with the Prime ED glass provides an unmatched clarity of image, depth of field, and field of view. Every lens is meticulously inspected by our production engineers before it goes into one of our scopes.

Finally, the entire system is inspected once-again, then assembled by hand in a Certified Clean Environment. The final step of the assembly is dry-Argon purging and sealing, ensuring that the entire optical system is shockprooffogproof, and IP67-rated dustproof and waterproof.

PRODUCT FEATURES

  • Purpose-built for high speed transitional shooting disciplines, carbine platforms, and lightweight hunting
  • True1X™ Third Party Certified Optical System
  • Equipped with our stainless steel 10 MRAD per turn Locking Turrets with Zero-Stop

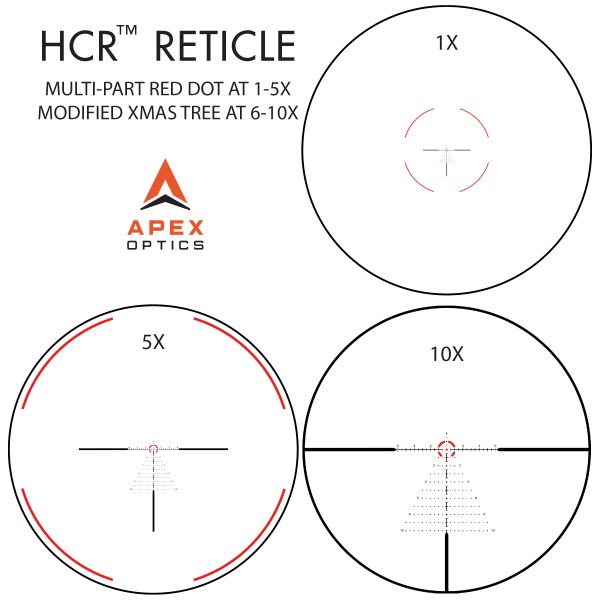

  • Proprietary Glass-Etched Apex HCR™ or Hybrid Combat Reticle
  • 6 Levels of illumination (Red) on the Main Stadia With an “OFF” position between each setting
  • The first-in-industry See-Through Integrated Removable Throw Lever
  • 0.1 MIL Windage and Elevation Adjustment per Click
  • Fast-Focus Eyepiece (+3/-2)
  • Designed for and tested in the rugged terrain of the Canadian Rockies, the frozen tundra, the wet Rainforest, the dry and dusty badlands throughout Southern Alberta and British Columbia
  • Designed in Canada, Made in Japan

INCLUDED IN THE BOX: CUSTOM-MOLDED FLIP-UP COVERS, REMOVABLE THROW LEVER, SUNSHADE, LENS CLOTH, SCOPE WRENCH, MANUAL



TECHNICAL SPECIFICATIONS

  • Tube Diameter 34mm
  • Objective Lens 24mm
  • Magnification 1-10x
  • FOV @ 100y 105.8 – 10.5 ft
  • Eye Relief 3.54″ (90mm)
  • Exit Pupil 7.2mm – 2.4mm
  • Parallax Range 150y FIXED
  • Glass TypeED
  • Light Tx. Rate99.7% per lens
  • Focal PlaneFirst (FFP)
  • ReticleHCR (Illuminated)
  • Reticle TypeGlass Etched
  • Elev. Adjustment40 MIL
  • Wind. Adjustment40 MIL
  • MILs/Rotation10E / 10W
  • Turret RotationCCW
  • Illumination ColorRed
  • Illumin. Levels6 w/ On-Off
  • Reticle TypeGlass Etched
  • Length11.5″ (292mm)
  • Weight21oz (600g)
  • Mounting Length6.75″ (171mm)

ADDITIONAL INFORMATION

Additional information

Weight 1.25 kg
Dimensions 49 × 14 × 14 cm
