Edge 1-10×24
THE EDGE 1-10x24
PURPOSE-BUILT COMPETITION AND TACTICAL LPVO
IN STOCK
FROM $84 / MONTH WITH
OVERVIEW | KEY FEATURES | GALLERY | HCR™ RETICLE | TECH SPECS | REVIEWS
DESIGNED FOR DYNAMIC CARBINE AND TACTICAL APPLICATIONS
The Edge epitomizes our ethos of “PURPOSE-BUILT OPTICS” to its core. Crafted with in cooperation with competitive sport shooters, Special Forces operators, and law enforcement professionals, it stands as the ultimate Low Power Variable Optic (LPVO) that checks every box.
Experience edge-to-edge optical clarity with our lab-certified TRU-1X™ system, facilitating seamless “both eyes open” shooting without compromising your field of view. Packed with an array of features, this ultra-versatile optic boasts a locking Zero Stop 10MIL per-turn elevation turret, providing 40 MILs of internal travel, a locking windage turret, stainless steel internals, fixed parallax at 150 yards, alongside our integrated removable throw lever and oversized zoom ring.
Like all of our riflescopes, the Edge is assembled in our Japanese factory and is packed with precision components and the highest quality Extra Low Dispersion (ED) glass with our proprietary HTX™ 7-Layer lens coating technology, delivering optimal light transmission, durability, and glare reduction.
The included Hybrid Combat Reticle (HCR™) is as innovative as it is indispensable. Developed in collaboration with top 3-GUN competitors, law-enforcement professionals, hunters, and Special Forces operators, this reticle gives you comprehensive data for long-range engagements at 5-10X, while ensuring swift target acquisition and lightning-fast transitions at 1-4X.
Above all, reliability is paramount. With the Edge, you can trust that it will hold true, track accurately, and unfailingly return to zero with every turret adjustment—GUARANTEED, every time!
DESIGNED AND TESTED IN CANADA, MADE IN JAPAN
TECHNICAL SPECIFICATIONS
- Purpose-built LPVO for short, medium, and long-range engagements, competitive shooting, and agency use
- Equipped with our stainless steel 10 MRAD per turn Locking Turrets with Zero-Stop
- Proprietary Glass-Etched Apex HCR™ Hybrid Combat Reticle
- 6 Levels of illumination (Red) on the Main Stadia With an “OFF” position between each setting
- The first-in-industry See-Through Integrated Removable Throw Lever
- 0.1 MIL Windage and Elevation Adjustment per Click
- Fast-Focus Eyepiece (+3/-2)
TECHNICAL INFORMATION
- Tube Diameter34mm
- Objective Lens24mm
- Magnification1-10x
- FOV @ 100y105.8 – 10.5 ft
- Eye Relief3.54" (90mm)
- Exit Pupil7.2mm-2.4mm
- Parallax Range150y FIXED
- Glass TypeED
- Light Tx. Rate99.7%
- Focal PlaneFirst (FFP)
- ReticleHCR™
- Reticle TypeGlass Etched
- Elev. Adjustment40 MIL
- Wind. Adjustment40 MIL
- MILs/Rotation10E / 10W
- Turret RotationCCW
- Illumination ColorRed
- Illumin. Levels6 w/ On-Off
- Length11.5" (292mm)
- Weight21oz (600g)
- Mounting Length6.75" (171mm)

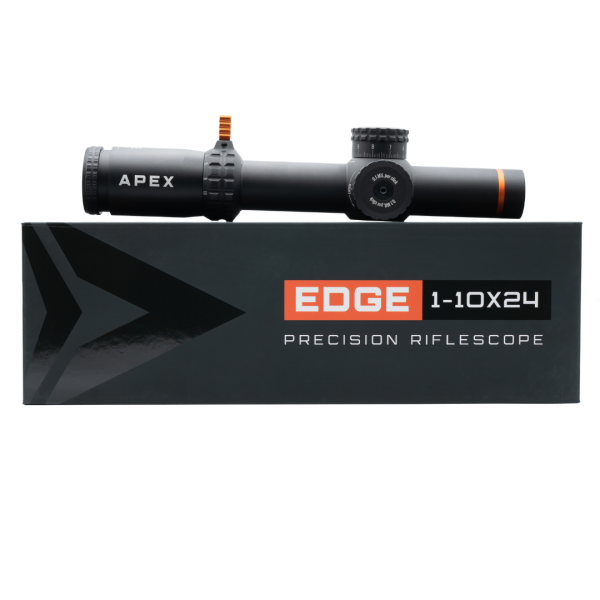

INCLUDED IN THE BOX: CUSTOM-MOLDED FLIP-UP COVERS, REMOVABLE THROW LEVER, LENS CLOTH, SCOPE WRENCH, MANUAL (EN)
TACTICAL RETICLE
HCR™ = HYBRID COMBAT RETICLE
When it came time to design the most important aspect of this LPVO we knew that we had to get it right.
When designing this innovative FFP reticle we turned to some of the most experienced competition 3GUN shooters and Special Forces operators that were generous with their time and input!
One of the most important things was to start with our True1X optical system, which doesn’t distort your field of view when shooting with both eyes open, as is common in most carbine, competition, and hunting situations.
The HCR reticle takes the best elements of a prism sight and fuses it with a modified XMAS-tree long-rate shooting reticle. Perfectly blended together, it gives you the ultimate flexibility for any kind of target engagement that your platform will support.
At 1X, the outer and inner “segmented rings” and can be illuminated at your leisure, and will provide you with a generous field of view while giving you rapid target acquisition and lightning-fast transitions.
As you zoom towards 5X magnification, the outer rings start to disappear from your field-of-view and a modified XMAS tree reticle comes into full view, along with the center floating dot and the inner segmented ring.
At 7-10X you can use the XMAS tree like any long-range reticle that you may have shot before, with a full 10 MILs of vertical holdover and 6 MILs of wind hold.
Needless to say, we believe that we have created the world’s finest LPVO, and quite possibly your new favorite optic!
KEY FEATURES
34mm MAIN TUBE
Type III Hard Anodized 34mm One-Piece 6061-T6 Aluminum Tube
24mm OBJECTIVE LENS
A perfectly balanced LPVO objective lens for light acquisition
FIRST FOCAL PLANE
First Focal Plane Reticle for Long Range Precision at all distances
ED PRIME GLASS
Highest Quality Extra-Low Dispersion (ED) Apochromatic Japanese Glass with 99.7% Light Transmission (per lens)
7 LAYER MULTI-COATING
Proprietary 7-Layer Glass Coating System provides it toughness, durability, and hydrophobic properties
ARGON PURGED & SEALED
Dry Argon Purged and Fully Sealed Components for Any Environment
MRAD TURRETS AND RETICLE
Milliradian Reticle and Turret Combination for Long Range Accuracy and Repeatability, Shot After Shot
LOCKING ZERO-STOP TURRETS
Stainless Steel LOCKING Zero-Stop Elevation Turret, and Locking Windage gives you the ultimate flexibility with guaranteed repeatability!
HCR™ HYBRID COMBAT RETICLE
Our proprietary reticle is the result of 2 years of research and development, perfectly designed for carbine use, lightweight hunting, and competitive shooting disciplines
FOCUS AT ALL DISTANCES
Generous Eye Relief and a Huge Eye-Box, and a fixed Parallax at 150 yards!
IP67 WATER AND DUSTPROOF
Certified IP67 Dustproof / Waterproof and Shockproof to 1200 G's
PRECISION CONSTRUCTION
Precision Constructed and Hand-Assembled in a Certified Clean Room
SIX SIGMA QUALITY
SIX SIGMA™ Quality Control System & 3-Step Pre-Shipping Inspection Guarantees that you get a ready-to-shoot riflescope the first time, every time!
BEYOND MIL-SPEC
Our products meet and exceed MIL-SPEC standards and will satisfy even the most stringent requirements of all civilian, agency, and military users
DESIGNED BY PROFESSIONALS
Our team is comprised of professionally designated Project Managers, optical engineers, competitive shooters, veterans and LEO's
THOUGHTFULLY DESIGNED, EXPERTLY BUILT
We start off with a solid block of 6061-T6 Aircraft Grade Aluminum billet and mill it down to a perfectly concentric 34mm tube.
We then soak it in a proprietary solution so that it exceeds MilSpec Type III Hardness and Abrasion Resistance standards. That’s how it gets that signature matte-black finish.
Our erector system is built with stainless steel components for a positive and distinctive “click”, guaranteeing repeatability and durability for the life of the product. No matter what the M.D. or the elements throw your way, you’ll be confident your riflescope will be up to the task without skipping a beat or getting off-zero.
The optical components are made using the highest quality Extra-Low Dispersion (ED) Japanese glass, which are ground down and polished with state-of-the-art equipment. The optical system uses a set of finely tuned APO (apochromatic) lenses, and when combined with the Prime ED glass provides an unmatched clarity of image, depth of field, and field of view. Every lens is meticulously inspected by our production engineers before it goes into one of our scopes.
Finally, the entire system is inspected once-again, then assembled by hand in a Certified Clean Environment. The final step of the assembly is dry-Argon purging and sealing, ensuring that the entire optical system is shockproof, fogproof, and IP67-rated dustproof and waterproof.
WARRANTY
THE BEST WARRANTY YOU'LL NEVER HAVE TO USE.
WORLD-CLASS SUPPORT WHEN YOU DO, THAT IS OUR OATH TO YOU!
All of our optics products carry a Lifetime Warranty. We’ll replace any product if it’s not up to our standards of quality and durability, no questions asked. If something stopped working as it should, then let us know and we’ll take care of it at no cost to you. For full warranty coverage information, please go to our Warranty page.
