Synergy 12x50 LRF

Synergy 12x50 Rangefinding Binocular

Range it. Solve it. Send it.

A 12×50 binocular with Japanese ED glass, laser response under 0.25 s, and an onboard Applied Ballistics® Elite solver. The range and the firing solution appear on the display without blocking your view of the target, and dedicated operating modes are designed for uninterrupted full field workflow without wasting time.

Original price was: $3,500Current price is: $3,300 USD
ORDER NOW
SHIPS JANUARY 15

Ships January 15

Ships January 15

Lifetime Warranty: optics, laser and electronics

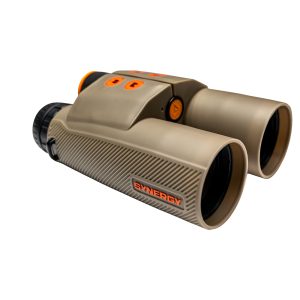

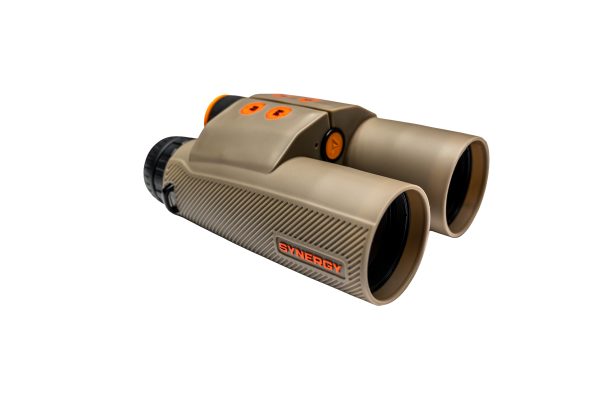

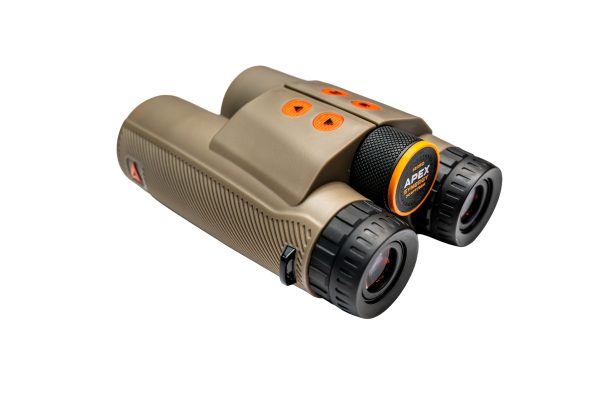

Apex Synergy 12x50 LRF binocular, side view, on a transparent background
12x50Japanese ED glass
10,000 ydReflective range
<0.25 sRanging time
±1 ydRanging accuracy
OnboardApplied Ballistics® Elite

What sets it apart

A binocular that ranges, solves, and stays on target

Most rangefinding binoculars hand you a distance and leave the rest to a Kestrel, a phone, or a dope card. Synergy measures the distance, reads the conditions, and runs the Applied Ballistics® Elite solver on board. The firing solution appears on the display while the target stays in view.

One instrument

Range, temperature, pressure, humidity, and a firing solution in a single view. No external sensors are required.

Built for the stage

OMNIMODE™ sets the data layout for how you shoot. MATCH COMMAND™ preloads stages, targets, and engagement data for known-distance matches.

Wind in the solution

WINDLOCK™ takes wind from the QuickWind workflow or from a connected device and applies it to every solution.

Coverage

Lifetime Warranty

Covers all components, including optics, laser, and electronics for the life of the product. Accidental damage, like drops and dings, are not covered, but we will repair or replace with fair pricing to keep you in the hunt.

Optics

Glass first

A serious 12x50 binocular with Japanese ED glass and 50 mm objectives, which gather more light than the 42 mm objectives common in rangefinding binoculars.

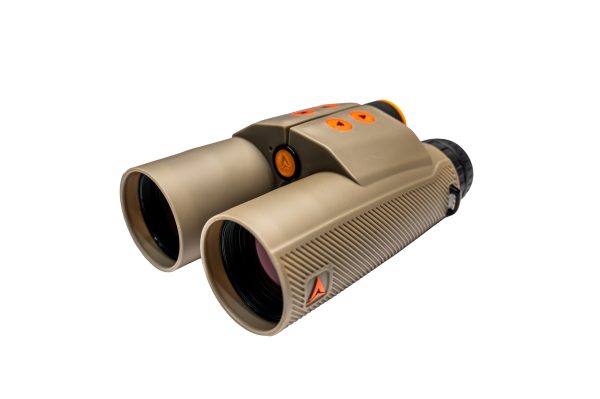

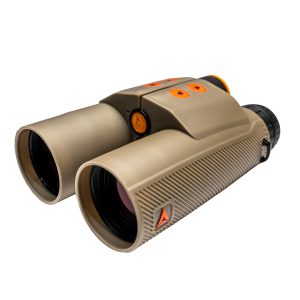

Apex Synergy 12x50 LRF binocular, front view of the objective lenses, on a transparent background

RTX and NEURAL-AX

Range and solution, under 0.25 s

The RTX™ Laser System ranges in under 0.25 seconds, accurate to plus or minus one yard, out to 10,000 yards on reflective targets.

The NEURAL-AX™ Engine runs the Applied Ballistics® Elite solver on board, so the firing solution arrives almost at the same moment the range comes back. With NEURAL-AX™, response is under 0.25 s. ENVIRONEX™ sensors measure temperature, pressure, humidity, and orientation continuously, so every solution uses the conditions where you stand.

LUMACORE display

What you will see in the glass

The LUMACORE™ MicroOLED display shows the reticle, the range, and the firing solution without covering the target. Brightness adjusts in five levels for daylight or low light. OMNIMODE™ sets the layout for each of the five operating modes.

Synergy General mode HUD, showing range
Synergy Hunting mode HUD, showing range, elevation, and wind hold
Synergy Competition PRS mode HUD, showing range, elevation, wind, and target data
Synergy Competition Freestyle mode HUD, showing range, elevation, wind, and target data
Synergy Team mode HUD, showing range, elevation, wind, and a team reticle

Official HUD screens from the Synergy Quick Start Guide. Sample values shown.

Inside Comp-PRS

GHOST Reticle

GHOST™ is a feature you can open from Comp-PRS, not a separate operating mode. It brings a digital reticle up on demand for measuring targets and timing movers.

Synergy GHOST Reticle HUD, with the calculated holdover lead at the top of the display

Named technologies

The system, in brief

Every named feature, kept short. These are the tools inside Synergy, not a second product manual.

LUMACORE MicroOLED display icon

LUMACORE™

High-brightness MicroOLED display for the reticle, range, and firing solution, without covering the target.

NEURAL-AX engine icon

NEURAL-AX™

Onboard Applied Ballistics® Elite solver. The firing solution arrives almost as soon as the range comes back.

RTX laser system icon

RTX™

Laser ranging in under 0.25 seconds, accurate to plus or minus one yard, rated to 10,000 yards on reflective targets.

OMNIMODE operating system icon

OMNIMODE™

Sets the workflow and data layout for how you shoot. Five operating modes: General, Hunting, Comp-PRS, Freestyle, and Team.

MATCH COMMAND icon

MATCH COMMAND™

Preloads stages, targets, and engagement data with Applied Ballistics® Quantum™ for known-distance matches.

QuickWind icon

WINDLOCK™

Takes wind from the QuickWind workflow or from a connected device and applies it to every solution.

GHOST reticle icon

GHOST™

A feature you can open from Comp-PRS. On-demand digital reticle for measuring targets and timing movers.

ENVIRONEX sensor suite icon

ENVIRONEX™

Onboard sensors measure temperature, pressure, humidity, and orientation, so every solution uses the conditions where you stand.

Applied Ballistics

Fully controllable through AB Quantum

Synergy is fully controllable and configurable through the Applied Ballistics® AB Quantum™ app.

Download on the App Store Get it on Google Play

Display and reticle

Reticles for observing, aiming, and measuring

GHOST™ brings a digital reticle up on demand from Comp-PRS. Team mode adds its own aiming and measuring reticles, including RMT for sizing targets.

Aiming reticles

Seven aiming reticles to choose from. Available in General, Hunting, Comp-PRS, and Freestyle. Not available in Team mode.

Aiming reticle 1
Reticle 1
Aiming reticle 2
Reticle 2
Aiming reticle 3
Reticle 3
Aiming reticle 4
Reticle 4
Aiming reticle 5
Reticle 5
Aiming reticle 6
Reticle 6
Aiming reticle 7
Reticle 7

GHOST™ Reticle

A Comp-PRS feature, available in 0.2 MRAD, 0.25 MRAD, and 0.5 MRAD. MOA equivalents are also available.

GHOST 0.2 MRAD reticle, 20 MRAD scale
0.2 MRADGHOST reticle
GHOST 0.25 MRAD reticle, 20 MRAD scale
0.25 MRADGHOST reticle
GHOST 0.5 MRAD reticle, 20 MRAD scale
0.5 MRADGHOST reticle

Secret sauce

GHOST mover lead

Range the target, time the crossing, and get speed and lead from the active profile. No other binocular does this.

  1. 01

    RangeRange the target first.

  2. 02

    Time it across the reticleStart the timer as the target crosses the 20 MRAD or 0 MRAD mark. Stop it when the target has traversed the full width of the reticle.

  3. 03

    Hold the leadThe NEURAL-AX engine calculates the mover speed and uses Applied Ballistics Elite to calculate the holdover lead.

Synergy GHOST Reticle HUD, with the calculated holdover lead at the top of the display

Team mode reticles

A 0.2 MRAD aiming and measuring reticle, a 0.25 MRAD version of the same, and the RMT reticle: a hybrid with an open center and finer 0.25 MRAD granularity past 2 MRAD on each side, for measuring target sizes. MOA equivalents are also available.

Team 0.2 MRAD aiming and measuring reticle
0.2 MRADAiming and measuring
Team 0.25 MRAD aiming and measuring reticle
0.25 MRADAiming and measuring
RMT team reticle, open center with finer ticks past 2 MRAD
RMTOpen center, finer 0.2 MRAD past 4 MRAD

Tech specs

Synergy 12x50 LRF

Optics

Configuration12x50 mm
GlassJapanese ED (extra-low dispersion)
PrismsBAK4, phase-corrected
Lens coatingsFully broadband multi-coated
Field of view279 ft at 1,000 yd (5.3°)
Light transmission92% at 550 nm
Eye relief14.3 mm

Laser rangefinder

Maximum range, reflective10,000 yd
Range, tree3,000 yd
Response timeUnder 0.25 s
Accuracy±1 yd
Laser wavelength905 nm, Class 1 eye safe
Beam divergence1.5 x 0.1 MRAD

Display and ballistics

DisplayHigh-brightness MicroOLED
Brightness5 levels
Aiming reticles7 options, available in all modes except Team
Digital reticleGHOST™, 0.2 / 0.25 / 0.5 MRAD, plus MOA versions
Team reticles0.2 MRAD, 0.25 MRAD, and RMT
Ballistic solverApplied Ballistics® Elite, onboard
App controlApplied Ballistics® Quantum™
ConnectivityBluetooth®
InclinometerAngle compensation, ±1°

Build

ChassisMagnesium alloy
Environmental protectionIPX7, nitrogen purged
Operating temperature-20°C to +55°C
Power1x CR123 (3V) battery

Ongoing Support

Support after the sale

Lifetime warranty

Lifetime warranty on all components, including optics, laser, and electronics.

Firmware updates

Synergy receives firmware updates over Bluetooth®.

Field calibration

Field adjustable aiming point and calibration menu for perfect performance.

FAQ

Frequently Asked Questions about Synergy 12x50 LRF

What is Synergy?

Synergy is a 12×50 laser rangefinding binocular pairing Japanese ED glass with an onboard Applied Ballistics® Elite solver and a daylight-bright MicroOLED HUD. Instead of a one-size-fits-all display, it adapts to how you actually shoot with five distinct operating modes (General, Hunting, PRS, Team, and Freestyle). Shooters can upload full stage data or QR match books, tag up to four targets in Freestyle mode, call wind directly through the glass with WINDLOCK™ and an on-demand GHOST™ digital reticle, and re-range individual targets mid-stage—features you won’t find on any other rangefinding binocular.

How far does Synergy range?

Synergy ranges out to 10,000 yards on reflective targets. You get ±1 yard accuracy and a laser response time under a quarter of a second, so your distance pops up almost instantly.

Does Synergy run Applied Ballistics without a phone in the field?

Yes! Once you're set up, you can leave your phone in your pack. Just build your gun profiles in the Applied Ballistics Quantum app and sync them to the binocular. From there, the onboard Applied Ballistics Elite solver handles all your firing solutions right inside the glass.

What units does Synergy use?

Synergy uses true MRAD (not MIL), along with standard MOA equivalents. For your GHOST™ windage brackets, you can select 0.2, 0.25, or 0.5 MRAD increments—or their MOA equivalents—to match your scope.

When does Synergy ship?

Orders begin shipping on January 15.

What does it cost?

Synergy is regularly priced at US$3,500 / CA$5,000, and it is currently available at an introductory sale price of US$3,300 / CA$4,500 while the sale is live. If you already locked in an earlier preorder, your original pricing remains unchanged.

What warranty does Synergy include?

Synergy is backed by the Apex Oath Lifetime Warranty, which covers the optics, laser rangefinder, and internal electronics. While accidental damage isn’t covered, we stand behind our gear and will always repair or replace damaged units at a fair, transparent price.
